Description

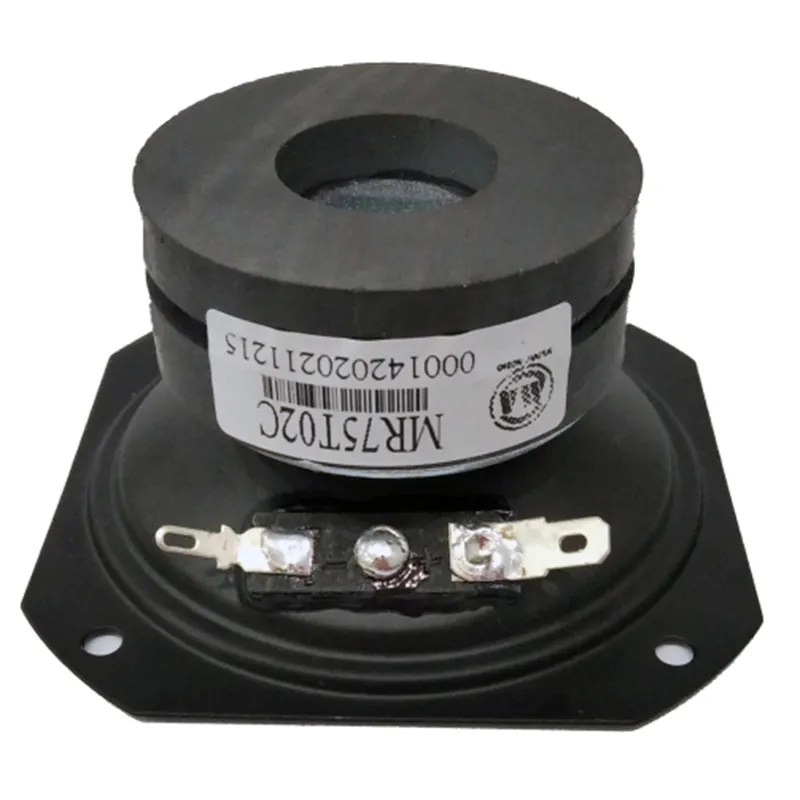

MR75T02C HF tweeter speaker, AES Power Handing 15W, Sensitivity 1W/1M 102dB, Frequency Range 1~20K Hz, Nominal Impedance 4Ω, Voice Coil Diameter14.2mm/0.5 inch.
Form of Information
MR75T02C, The biggest difference between hifi audio and ordinary audio is the sound quality. Due to the different design concepts, hifi audio pays more attention to sound quality, then appearance and cost. Often the three cannot have both, so hifi audio sometimes abandons appearance and cost. And to ensure a high sound, so its price is usually more expensive than ordinary speakers.
| General Specifications | |
| Throat Diameter | / |
| Nominal Impedance | 4Ω |
| RMS Power Input | 15W |
| MAX Power Input | 30W |
| Sensitivity 1W/1M | 102dB |
| Frequency Range | 1~20K Hz |
| Voice Coil Diameter | 14.28mm/0.56nch |
| Voice Winding Material | Copper |
| Diaphragm Material | / |
| Magnet | Ferrite Ring |
| Mounting & Shipping Information | |
| Overall Diameter | 98mm |
| Baffle Cutout Diameter | 77mm |
| Depth | 44mm |
| Net Weight | 0.3kg |
| Shipping Weight | / |
| Shipping Box（8Unit） | / |

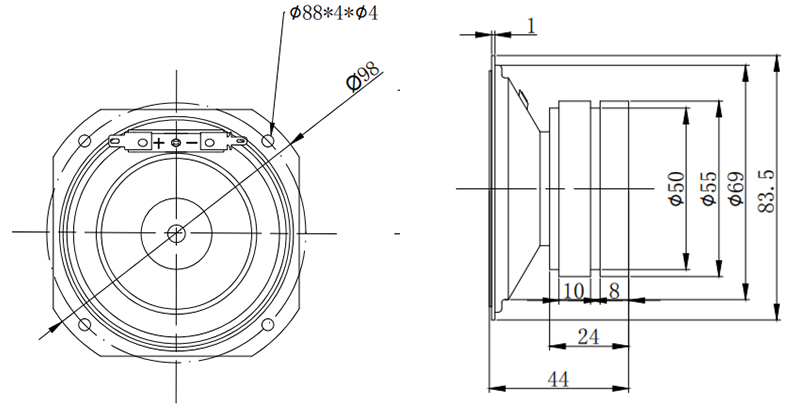

This is the size chart of the MR75T02C, which can better help you design and install the speaker:
MR75T02C HF drivers speaker curve graph.
Company Introduction
Founded in 2005, Merry Audio is a professional manufacturer focusing on R&D, manufacturing and sales of high-power speakers for entertainment KTV, bars, conferences and outdoor perfor-mances. We are committed to providing our customers with high-quality speaker units and supporting solutions.
Now it has world-class production technology and equipment such as KLIPPEI, LMS, CLIO, and laser Test elastic wave displacement and drum paper FS instrument, high-power life tester, salt spray testing machine and online full inspection curve and parameter QC version KLEPPEL and other equipment.
FAQ
Q1: How can i get a sample?
If you need some samples to test, we can make as per your request.
You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order. Thanks.
Q2: How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
Q3: Can you produce according to customers' design?
We mainly do the OEM/ODM service.
Q4: Is it OK to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: How to order?
Please send us your purchase order by mail or WhatsApp with below information:
1) Product information: Quantitiy, Model number, Specification.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination: seaport/airport.
4) Forwarder's contact details if you have.
Q6: OUR services
1. Any questions from you are welcome and will be replied in 24 working hours.
2. Experienced staff answer all your questions in fluent English.
3. Special discount and protection of sales area provided to our distributor.
4. Specialized in speakers over 17 years.
5. A team of designers and engineers are capable to create new items according to personal request.
6. Customized design is available.
Welcome OEM and ODM
