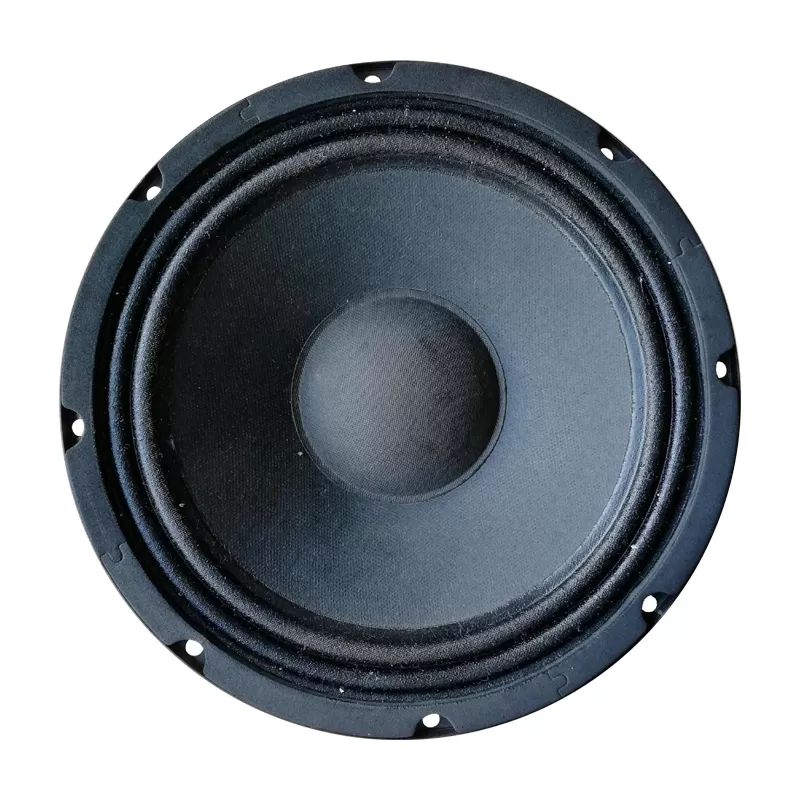

MR08H22 8 inch woofer

Description

8 inch iron frame 140mm magnet 52mm voice coil woofer speaker, This unit can be designed as home speakers, monitor speakers, multimedia speakers, small HI-FI speakers, AES Power Handing 150W, Sensitivity 1W/1M 92.1dB, Frequency Range 45-3.5kHZ.


Form of Information

Form information:

MR08H22,This is a high-quality speaker unit. The frequency response of a speaker covers the entire sound range of high, medium and low frequencies, achieving the effect of a point sound source, and the sound quality can be comparable to that of a 2-way speaker.

The product is suitable for home living room theater, movie K, movie bar, hotel room theater, foot massage K, as well as multi-functional conference rooms and outdoor places.



General Specifications



Nominal Diameter


200mm/8 inch

Nominal Impedance


RMS Power Input


150W

MAX Power Input


300W

Sensitivity 1W/1M


92.1dB

Frequency Range


45-3.5KHz

Voice Coil Diameter


52mm/2 inch

 Voice Windinig Material


Copper

  Voice Former Material


Kapton

Voice Winding Depth


17mm

Magnetic Gap Depth


8mm

Xmax


±4mm

surround material


Polycotton

surround Design


M-roll

Magnet

Φ140

Ferrite Ring

Thiele & Small Parameters



Resonance Frequency

Fs

45HZ

DC Resistance

Re

5.5Ω

Mechanical Factor

Qms

5.7

Electrical Factor

Qes

0.4

Total Factor

Qts

0.4

BL Factor

BL

9.3T.m

Effective Moving Mass

Mms

22.7g

Compliance

Cms

561.5μ M/N

Equivalent Cas Air Load

Vas

39.2L

Effetive Piston Area

Sd

221.7cm2

η(Eta Zero)

η0

0.8%

Mounting & Shipping Information



Overall Diameter


210mm

Bolt circle diameter


197mm

Baffle Cutout Diameter


184mm

Depth


100mm

Net Weight


3.1kg

Shipping Weight


3.3kg

Shipping Box(Single)


22*22*11cm

Shipping Weight  (8Unit)


27.1kg

Shipping Box(Single)  (8Unit)


46.5*46.5*26cm



This is the size chart of the MR08H22, which can better help you design and install the speaker:


MR08H22 8-inch woofer speaker curve graph.
