Description

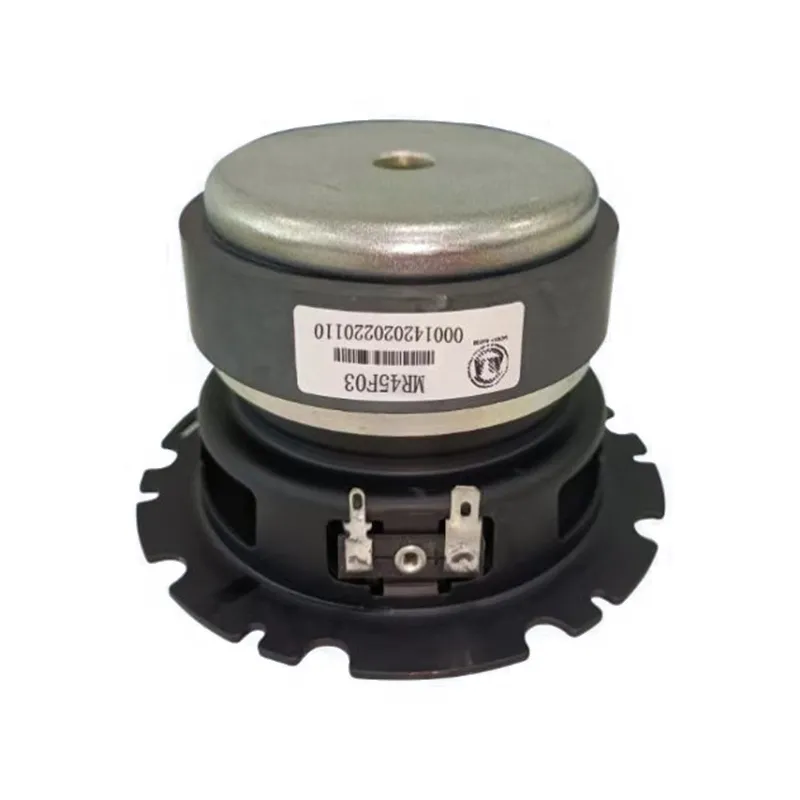

4.5 inch iron frame 90mm magnetic 32mm voice coil rubber edge subwoofer speaker
This is a product that is very worth looking forward to, with small diameter, light weight, high sensitivity, very smooth frequency response curve and very little distortion. AES Power Handing 30W, Frequency Range 61-10.0kHZ, Sensitivity 1W/1M 86dB.
Form of Information
The tone is very sweet, the vocals are full and soft, and the high frequency is delicate. His design is very unique, and every detail is carefully polished and designed by engineers. From the product's shape, structure, to the acoustic principle design, the best design results have been obtained after numerous experimental tests.
| General Specifications | ||
| Nominal Diameter | 123mm/4.5inch | |
| Nominal Impedance | 4Ω | |
| AES Power Handing | 30W (AES) | |
| Maximum Power | 60W | |
| Sensitivity 1W/1M | 86dB | |
| Frequency Range | 61-10.0kHZ | |
| Voice Coil Diameter | 32.5mm/1.27 inch | |
| Windinig Material | Copper | |
| Former Material | KaPton | |
| Winding Depth | 22mm | |
| surround material | Rubber | |
| surround Design | R-roll | |
| Magnet | Φ90 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 61Hz |
| DC Resistance | Re | 3.35Ω |
| Mechanical Factor | Qms | 4.65 |
| Electrical Factor | Qes | 0.65 |
| Total Factor | Qts | 0.57 |
| BL Factor | BL | 5.7T.m |
| Effective Moving Mass | Mms | 16.5g |
| Compliance | Cms | 419uM/N |
| Equivalent Cas Air Load | Vas | 4.45L |
| Effettive Piston Area | Sd | 86.6cm² |
| η(Eta Zero) | η0 | 0.14% |
| Mountiong & Shipping Information | ||
| Overall Diameter | 123mm | |
| Bolt circle diameter | 118mm | |
| Baffle Cutout Diameter | 95mm | |
| Depth | 69mm | |
| Net Weight | 1.4KG | |
This is the size chart of the MR45F03, which can better help you design and install the speaker:
MR45F03 4.5-inchsubwoofer speaker curve graph.
