Description：
high quality 12 inch woofer with 170mm magnets and 65mm voice coil The whole scheme design is very unique, and every detail is polished with ingenuity. AES Power Handing 200W, Sensitivity 1W/1M 94dB, Frequency Range 48-4.4KHz.
Form of Information
Form information：
MR12H65B 12-inch woofer speaker.Professional PA bass speaker unit, this series of products is very worth looking forward to, it is specially designed for KTV, bars, party rooms, multi-functional banquet halls and other places
The timbre is very special, and it can have excellent performance in various frequency bands, providing speaker designers with a very good matching speaker unit.
General Specifications | ||
Nominal Diameter | 315mm/12inch | |
Nominal Impedance | 8Ω | |
AES Power Handing | 200W (AES) | |
Maximum Power | 400W | |
Sensitivity 1W/1M | 94dB | |
Frequency Range | 48-4.4kHZ | |
Voice Coil Diameter | 65.5mm/2.57 inch | |
Windinig Material | Copper | |
Former Material | KaPton | |
Winding Depth | 18.5mm | |
surround material | Polycotton | |
surround Design | W-roll | |
Magnet | Φ170 | Ferrite Ring |
Thiele & Small Parameters | ||
Resonance Frequency | Fs | 48Hz |
DC Resistance | Re | 4.79Ω |
Mechanical Factor | Qms | 17.2 |
Electrical Factor | Qes | 0.42 |
Total Factor | Qts | 0.41 |
BL Factor | BL | 16.6T.m |
Effective Moving Mass | Mms | 79.8g |
Compliance | Cms | 0.14MM/N |
Equivalent Cas Air Load | Vas | 56.4L |
Effettive Piston Area | Sd | 539.1cm² |
η(Eta Zero) | η0 | 1.43% |
Mountiong & Shipping Information | ||
Overall Diameter | 315mm | |
Bolt circle diameter | 295mm | |
Baffle Cutout Diameter | 280mm | |
Depth | 146mm | |
Net Weight | 5.66KG | |
Shipping Weight | 6.16KG | |
Shipping Box(Single) | 32*32*15 cm |

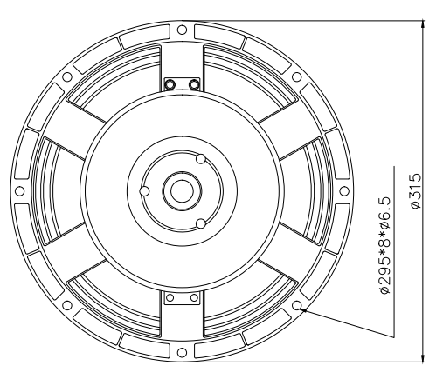

This is the size chart of the MR12H65B, which can better help you design and install the speaker:
MR12H65B 12 inch full range speaker curve graph.
